GRAVITY BRED

When gravity calls, you can either fight against it or commit to the ride. Don’t be afraid to take things too far, push harder, and dare where others hesitate. Relentless evolution is the only way forward, because the finish line is just the beginning of something greater.

Highlights

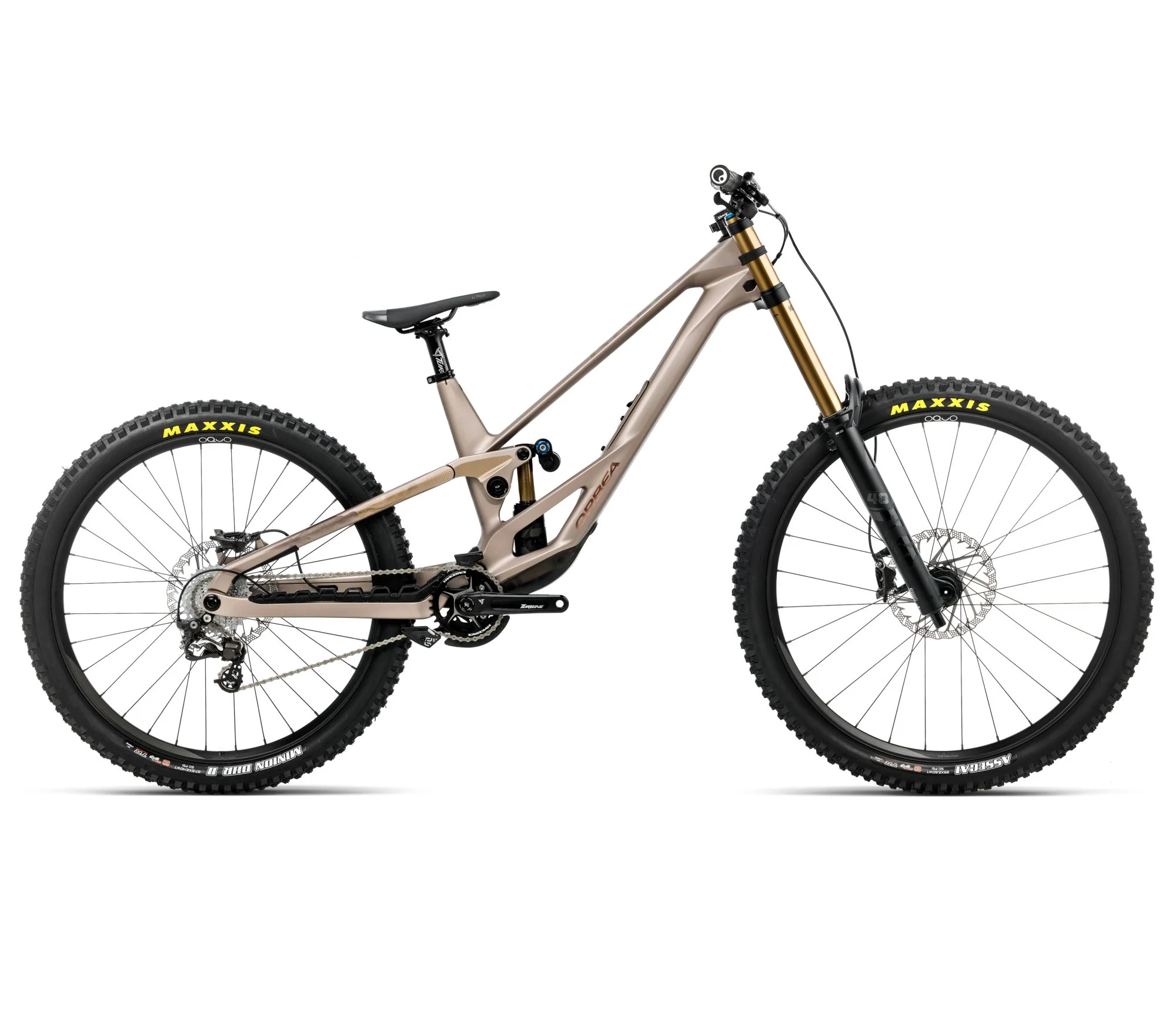

Rallon DH is the ultimate downhill machine, born from years of race track development, and exactly the same bike raced at World Cups. With 200mm of suspension front and rear, it’s built to handle the steepest, roughest descents at race speeds. Its low center of gravity provides unmatched stability and control, while supple suspension ensures relentless traction. Plus, with unprecedented adjustability, you can fine-tune your ride to conquer any track with confidence.

Get the highlights

Downhill Fast

Gravity tuned with uncompromised suspension performance to get you downhill. Fast.

Adjustability for Every Track

Dial in your ride with unmatched adjustability for every circuit.

Built For Abuse

Count on Rallon's robust builds for the most reliable downhill companion.

Downhill Fast

Developed to go racing on the tough World Cup DH tracks, Rallon is ready for any challenge. That means unbeatable suspension performance and a balanced, stable frame.

Uncompromised suspension performance

Crush any descent with Rallon’s finely tuned suspension system—built for buttery smoothness and relentless speed, no matter the terrain.

Gravity Kinematics

Rallon DH is prepared for the steepest, gnarliest descents of any World Cup track with 200mm suspension front and rear, ready for the big drops and high speeds you find at top-level racing.

Progressive Leverage Ratio | Predictable At All Times

A progressive leverage curve means the suspension stiffens as the bike moves deeper into its travel. This behavior is influenced by both the frame and the shock. The result? Better traction through small bump sensitivity, strong mid-stroke, and support to resist bottoming out on big hits.

Lower Pedal Kickback | Incredibly Smooth Traction

Reducing pedal kickback minimizes the effect of chain tension on the suspension. This results in the smoothest ride with that chainless feel and incredible traction.

Anti-Rise | Controlled Braking

The rear pivot location decouples braking forces from the swingarm assembly, reducing braking feedback.

Low Center of Gravity

Stable. Settled. Fast. A DH bike needs extra stability to counteract forces that can throw it off balance on steep and rough tracks. Developing a frame and system that lowers the center of gravity is a sure bet.

GravityLink - Designed for stability. Our exclusive GravityLink allows us to position the shock as low as possible, unlocking the ideal setup for maximum stability on the descents. Huge Standover and Great Balance. Lowering the shock lets us lower the top tube. Bringing down the height of both the shock and top tube plus a low bottom bracket takes down Rallon's center of gravity. The whole package results in a noticeable increase in stability, and agility while leaning into corners or throwing the bike around in the air. Planted when pushing hard. The GravityLink grants the possibility to add weight to the BB, a behind-the-scenes hack of many World Cup mechanics. Adding more weight gives a plusher, more planted ride. Remove the weights for tracks that demand acceleration and quicker reactions. Easy and Secure Weight Installation. Weights are bolted directly to the GravityLink. Add one, two or all three weights of 395, 95 and 93 g.

25%: More Linear. This setting is for faster tracks, with added mid-stroke support and more responsive handling. 30%: More Progressive. This setting is ideal for tackling rough DH tracks with bigger drops.

DH Refined Geometry

Years of developing and testing Rallon's geometry on DH tracks has allowed us to refine it. Now, with more adjustability than ever before, riders can fine tune their Rallon and optimise their ride for any given track.

Mullet Setup

Rallon DH comes with a 27.5" rear wheel, ready for the steepest DH tracks.

Tuned Rigidity

Frame rigidity affects feel and grip. Our braced frame design allows us to add rigidity near the bottom bracket and have greater control of the frame structure.

Precision tracking - Manipulating the carbon weave allows us to control flexibility without sacrificing strength, giving a perfectly balanced front and rear triangle stiffness. A lot of technology, modeling and testing which translates to confidence and grip on rough cambered terrain and valuable fractions in race runs.

Pillars of Strength - Rallon is a the sum of a strong carbon frame, durable alloy linkage and our GravityLink shock bracket for a structure tough enough to withstand any downhill abuse.

Adjustability for Every Track

There's a big difference between a downhill race, a bike park lap and a relaxed ride with friends. Rallon's adjustability helps you get the perfect setup, no matter the where the day takes you.

On the Trail: Quick Adjustments For Each Track. Gain valuable seconds on your times by tuning your bike to the track and your style. It is quick and easy, something you can do before a big run.

Headset Adjust: The headset angle is easily adjustable using the offset headset cup. The possibility of regulating +/- 0.75º allows you to slip into a more slack position for steeper tracks or more aggressive runs.

Flip Chip: Using the flip chip, you can change the shock progressivity around 5%.

Weighted Bottom Bracket: Install any of the included weights onto the GravityLink via its threaded holes to lower the center of gravity and improve composure.

Off The Trail: Match Your Chainstay Length To Your Style. Rallon DH comes with 450mm chainstays as standard, offering maximum stability at high speeds. If you prefer agility over all-out speed, you can choose 442mm chainstays on any size.

Built For Abuse

Rallon will get you all the way to the bottom with a quiet, reliably equipped frame and gravity standard components.

Quiet frame fundamentals

The only noise you want to hear is the crowd cheering, not rattling or distractions from your bike.

Improved Cable Routing - Cables are fully guided inside Rallon's frame, eliminating rattling and making it easy to change cables during maintenance.

Upgraded Frame Protection - Rallon is fitted with an upgraded, soft rubber chainstay protector. The updated design with hollow recesses absorbs chain hits better and makes less noise.

Gravity standard components

Components are selected to withstand the tough life of a DH bike and give confidence in any challenge.

DH proven wheels - OQUO's MC32 TEAM alloy wheels keep Rallon on the right track. Tough and reliable, these are the wheels that the FMD - Gravity Cooperative team trusts at the world cups.

DH and DD tyres - The toughest tyres for the roughest tracks. All models come with the strongest Maxxis DH and DD options to accompany you wherever you dare to go.

Hard hitting forks - Demanding downhill tracks require stiffer, more burly forks. Rallon DH is fitted with the sturdy FOX 40.

Integral Orbea Elements

Fully Loaded Pivot - Rallon's Fully Loaded Pivot (FLP) includes a multitool with 2, 3, 4 and 5 hex keys held securely in place with a magnet while the rear axle holds a 6mm hex key for quick adjustments right at hand.

LOCKR - Enjoy the advantages of our updated LOCKR with easier access than ever. Store tools, lunch or even a jacket easily behind the water bottle mount ready for easy access.

Fully Sealed Bearings - Bearings normally fail due to grime, not overload. We have worked hard to seal Rallon's main pivot points. Clean bearings last longer and keep the suspension working optimally when things get dirty.

Second Skin - Rallon DH is ready for a tough life and the replaceable vinyl protection keeps the paintwork looking like new for longer.
